Token Ring Explained: How IBM's LAN Worked and Why It Faded

Token Ring was a local area networking technology closely associated with IBM and widely used in enterprise environments in the late 1980s and 1990s. It used token passing instead of contention-based access, which gave devices an orderly way to transmit data. Today it is mainly a legacy technology, but it remains important for understanding older enterprise networks and the history of LAN design.

For readers interested in broader retro enterprise computing themes, Retro IT T-Shirts organizes its catalog into collections such as T-Shirts (small - 3XL), T-Shirts (4XL - 5XL), and Best Sellers as listed in the store file.

What Token Ring is

Token Ring is a LAN technology that operates at the physical and data link layers. In a Token Ring network, devices share access to the medium by passing a small control frame called a token. A station can transmit only when it holds the token, which reduces collisions and creates predictable access behavior.

Although the name suggests a simple ring of computers, many real Token Ring deployments used a star-wired physical layout connected through a central device, while still behaving logically as a ring. IBM was the best-known vendor behind the technology, and Token Ring became a recognized option in offices that used IBM systems and structured enterprise networking.

How Token Ring works

The core idea is token passing. A free token circulates around the network, and when a device has data to send, it captures the token, transmits its frame, and then releases a new token after the transmission rules are satisfied. This process gives each node a controlled opportunity to access the network.

Because only the token holder transmits, Token Ring avoids the collision behavior seen in older shared Ethernet designs. That made network access more deterministic, which was useful in environments that cared about predictable performance under load.

Basic transmission sequence

1. A token circulates around the logical ring.
2. A station with data seizes the token.
3. The station sends a frame addressed to the destination.
4. The frame travels around the ring and is recognized by the recipient.
5. The frame returns toward the sender, which removes it from the ring.
6. A new free token is released so another station can transmit.

Token Ring speeds, hardware, and topology

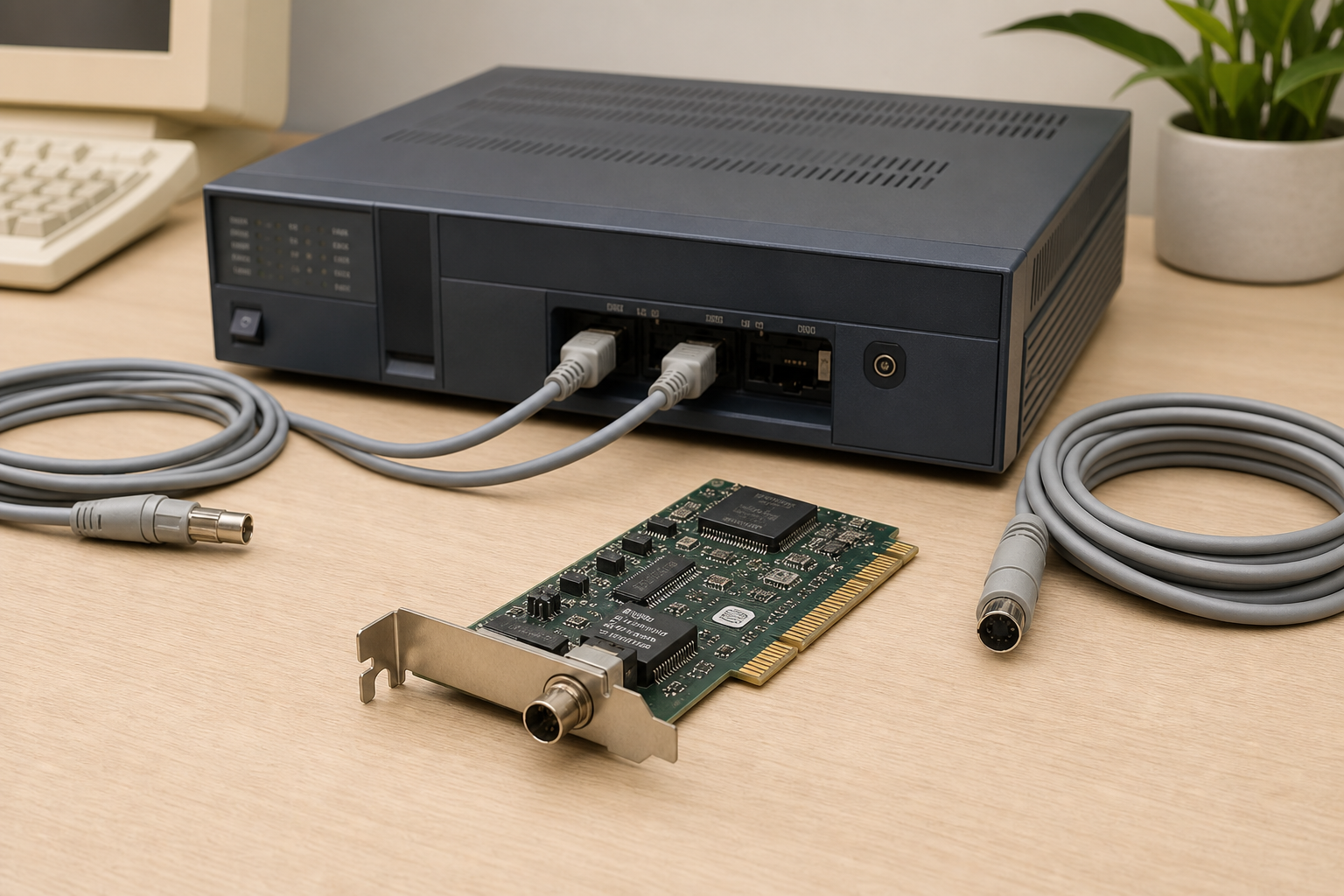

The most common Token Ring speeds were 4 Mbps and 16 Mbps. Networks typically used IBM-compatible network interface cards, specialized cabling, and central wiring equipment often called a multistation access unit, or MAU. Even though devices usually connected to a central point, the network still functioned logically as a ring.

This distinction between physical topology and logical topology is one reason Token Ring can be confusing at first. A network could look like a star in the wiring closet but still use token passing in a logical ring design.

Why Token Ring mattered in enterprise networks

Token Ring earned attention because it offered disciplined media access and strong vendor backing. In the period when shared-medium Ethernet still dealt with collisions, Token Ring could look technically appealing for enterprise environments that wanted orderly performance characteristics and centralized wiring practices.

It also became part of the culture of legacy networking alongside technologies and ecosystems many experienced admins still remember. For general retro IT and enterprise-themed merchandise, the store also lists a brand page at Retro IT T-Shirts.

Token Ring vs Ethernet

The most useful comparison is that Token Ring controlled who could talk, while older shared Ethernet let devices contend for access. In early LAN history, that gave Token Ring a reputation for orderly network behavior. Over time, however, Ethernet improved rapidly in speed, cost, and simplicity, especially as switching became common.

Once switched Ethernet removed many of the practical drawbacks of shared Ethernet, Token Ring lost much of its advantage. Ethernet hardware became cheaper, more widely supported, and easier to source across vendors, which helped it become the dominant LAN standard.

Key differences

• Token Ring relied on token passing; Ethernet became dominant with simpler, lower-cost equipment.
• Token Ring was strongly tied to IBM-oriented enterprise installations.
• Ethernet evolved faster in market adoption and hardware availability.
• Switched Ethernet reduced collision concerns that once helped Token Ring stand out.

Why Token Ring declined

Token Ring declined mainly because Ethernet became faster, cheaper, and more scalable across vendors. As Fast Ethernet and later Gigabit Ethernet spread, organizations had less reason to stay with a more specialized and comparatively expensive platform. The broader ecosystem also favored Ethernet for training, equipment supply, and long-term support.

By the 2000s, Token Ring had largely become a legacy technology. It still appears in historical documentation, lab environments, and some long-lived enterprise systems, but it is no longer a mainstream choice for new LAN deployments.

Where Token Ring is still relevant

Token Ring still matters in three contexts: legacy support, network history, and technical education. If you work with old IBM infrastructure, migration projects, or archived enterprise documentation, knowing how token passing and logical ring operation worked can still be useful.

It also remains part of retro computing culture. Many engineers who worked with Novell, Banyan, Windows NT, or IBM-era enterprise gear remember Token Ring as one of the technologies that defined an earlier generation of networking.

FAQ

What was the main advantage of Token Ring?

Its main advantage was controlled network access through token passing. That reduced collisions and made access to the network more predictable than older shared Ethernet designs.

Was Token Ring physically wired as a ring?

Not always. Many Token Ring networks were physically wired in a star pattern through central access equipment, but they operated logically as a ring.

What speeds did Token Ring commonly use?

The most common Token Ring speeds were 4 Mbps and 16 Mbps.

Why did Ethernet replace Token Ring?

Ethernet replaced Token Ring because it became less expensive, faster, and more widely supported. Switched Ethernet also removed many of the performance concerns that once made Token Ring attractive.

Is Token Ring still used today?

It is mostly legacy technology today. It may still appear in older enterprise environments, specialized maintenance scenarios, or historical lab setups, but it is not common in modern LAN deployments.
